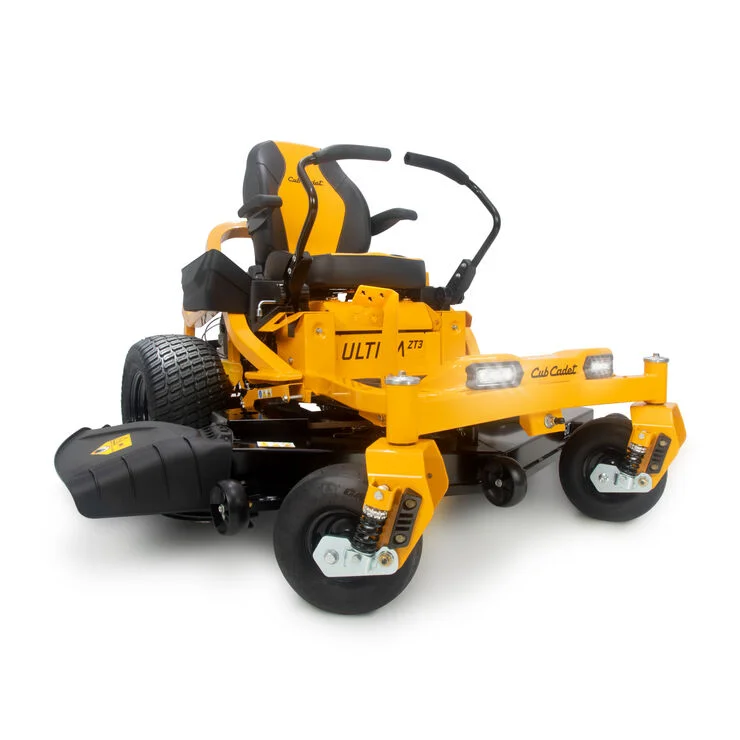

Cub Cadet Ultima Series ZT3 60 60-in. 24 HP

The Cub Cadet® Ultima Series ZT3 60 60-in. 24 HP* Zero-Turn Lawn Mower with AeroForce™ Fabricated Deck is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness. Dual hydrostatic transmissions engineered for quick ground speeds that leaves your yard with a professional-quality finish. A continuous tubular steel frame with fully e-coated corrosion defence system designed to help protect against wear and tear.

• A premium 24 HP*/725cc Kawasaki FS730V twin-cylinder OHV engine, commercial-grade power that meets your yard’s toughest demands
• Commercial-grade dual hydrostatic rear-wheel transmissions for quick and effortless 7.5 MPH forward (3.5 MPH reverse) zero-turn controlled ground speeds.
• Cut comfortably at your maximum speed with automotive-inspired, fully adjustable premium 24 in. high back seat with cushioned armrests, ball-bearing seat slide and advanced polymer seat isolators.

• 60-in. AeroForce fabricated deck with heavy-duty reinforced leading edges and cutting system that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness.
• Zero-Turn Mower

ZT3 60 Features:

• Built with Strength
• Redefining Comfort
• Comfort

Specs & Maintenance

Engine

• Engine Brand: Kawasaki®
• Engine Model: FS Series
• Engine Model Number: 730V
• Engine Displacement: 726cc
• Engine Output: 24HP
• Starter Type: Electric
• Fuel Tank Capacity: 3.5 gal. US (13.25 L)
• Cylinders: Twin
• Engine Start: Ignition Key
• Engine Oil Capacity: 2.1 qt US ( 2 L)
• Lubrication: Fully pressurised
• Charging System: 15 amp regulated
• Fuel Gauge: No
• Governor: Mechanical
• Choke: Separate Choke
• Air Filter: Single element
• Oil Filter: Yes
• Fuel Delivery: Carburetor

Battery

• Battery: 210 CCA
• Battery Type: AGM (Absorbent Glass Mat)
• Battery Voltage: 12V

Drive System

• Transmission:Tuff Torq TZ 450
• Forward Speed: 7.5 MPH /12.0 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h
• Drive System: Hydrostatic

Cutting Deck

• Deck Cutting Width: 60 in
• Deck Wash: No
• Deck Material: 11-gauge steel
• Deck Engagement (PTO): Electric
• Deck Construction: Fabricated
• Blade(s): Three
• Deck Lift: Foot pedal with Dial Adjust
• Cutting Height Range: 1” – 4.5”
• Anti-Scalping: Three gauge wheels
• Deck Positions: 15

Chassis

• Frame: 2” x 2” tubular steel
• Turning Radius:0°
• ROPS: No
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes

Controls

• Cruise Control: No
• Brakes: Disc
• Steering Control: Lap Bars

Comfort

• Seat Type: 24″ high back
• Armrests: Yes
• Seat Adjustment: Lever
• Front Caster Suspension: Yes

Wheels

• Rear Tires: 20″x 12″-10″
• Front Tires: 11″x 6″-5″
• Tire Tread: Turf Master / Multi Trac

Specifications

• Series: Ultima Series™ ZT

Additional Specifications

• Hour Meter: Yes
• Mulch Kit: Available separately
• Headlight(s): Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Parking Brake:Lap Bar Integrated

Warranty

• Residential Warranty: 3-year unlimited hours
• Frame Warranty: Lifetime Limited
• Deck Shell Warranty: Lifetime limited
• Commercial Warranty: No
